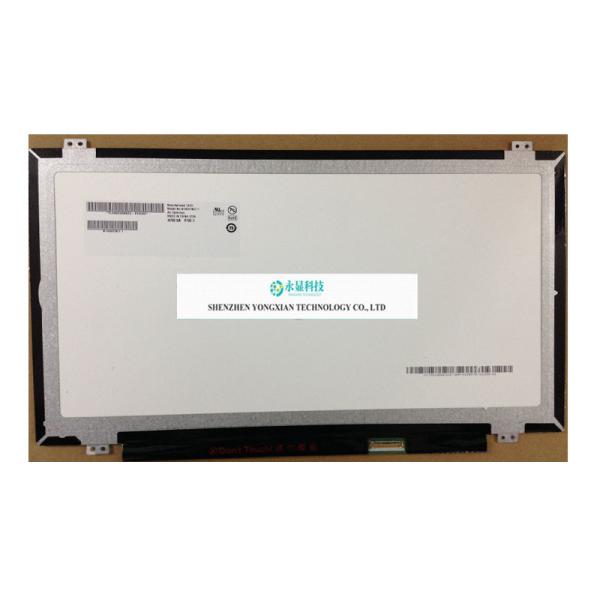

B140HTN01.1 B140HTN01 1920X1080 laptop LED LCD Screen 14 eDP 30PIN Full-HD NEW

Brand Name : AUO

Model Number : B140HTN01.1

Place of Origin : CHINA

MOQ : 1

Supply Ability : 1000

Delivery Time : 5

Packaging Details : Original packaging/conventional packaging box

Brand : AUO

model : B140HTN01.1

Size : 14.0

Panel type : a-Si TFT-LCD, LCD module

Resolution : 1920(RGB)×1080, FHD, 157PPI

Pixel layout : RGB vertical stripe

Display area : 309.14(W)×173.89(H) mm

Appearance dimensions : 320.4(W)×205.1(H)×3(D) mm

Support colors : 262K , 60% NTSC

Surface treatment mirror : mirror face(Haze 0%)，Hard coating (3H)

Brightness : 350 cd/m² (Typ.)

Contrast ratio : 500:1 (Typ.) (Transmission)

viewing angle : 45/45/15/35 (Typ.)(CR≥10)

Working mode : TN， Constant white display, transmissive

Refresh rate : 60Hz

Touch function : No Touch

Appearance Style : Thin screen (PCBA flat, thickness ≤ 3.2mm)

Panel application : Notebook computer

voltage : 3.3V (Typ.)

Maximum rating : Storage temperature:- 20~60 ° C Operating temperature: 0 ~ 50 °C

interface type : 30 pins eDP (2 Lanes)

Contact Now

B140HTN01.1 (Product Code: AUO111D is a 14.0-inch LCD module product launched by AU Optronics Corporation (AUO) using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. According to the product specification document HW0A_Ver1.0 released by AU on July 22, 2013, B140HTN01.1 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 309.14 × 173.89 (width × height) mm, and its appearance size is 320.4 × 205.1 (width × height) × 3 (thickness) mm. The surface treatment is mirror (Haze 0%), Hard coating (3H), and the net weight of the product is 270g (Max.). The appearance style is thin screen (PCBA flat, thickness ≤ 3.2mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. B140HTN01.1 adopts eDP (2 Lanes) signal interface, with a total of 30 pins, connected by terminals, and a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz., And the parameters were finally updated on June 21, 2022. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. Based on its white LED backlight, LED driver, inverted terminal, and mirror surface features, this model is recommended for use in laptops.

Packing & Shipping

B140HTN01.1 B140HTN01 1920X1080 laptop LED LCD Screen 14 eDP 30PIN Full-HD NEW

B140HTN01.1 B140HTN01 1920X1080 laptop LED LCD Screen 14 eDP 30PIN Full-HD NEW

Trading Process

B140HTN01.1 B140HTN01 1920X1080 laptop LED LCD Screen 14 eDP 30PIN Full-HD NEW

FAQ

1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.

2.What payment method can I use?
T/T is the best,we aslo accpet Paypal

3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,

and will use third parties delivery services or delivered as clients request.

4.How long is the warranty period?
12 Months

5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
