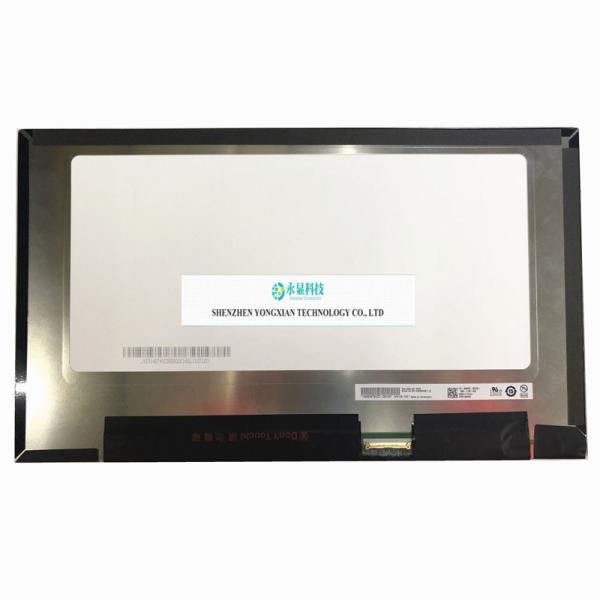

B140QAN01.2 QHD 40PIN 25601440 Laptop LCD LED Screen Panel

Brand Name : AUO

Model Number : B140QAN01.2

Place of Origin : CHINA

MOQ : 1

Supply Ability : 1000

Delivery Time : 5

Packaging Details : Original packaging/conventional packaging box

Brand : AUO

model : B140QAN01.2

Size : 14.0

Panel type : a-Si TFT-LCD, LCD module

Resolution : 2560(RGB)×1440, Quad-HD, 210PPI

Pixel layout : RGB vertical stripe

Display area : 309.35(W)×174.01(H) mm

Appearance dimensions : 320.8(W)×189.4(H)×4.85(D) mm

Support colors : 16.7M , 72% NTSC

Surface treatment mirror : -

Brightness : 300 cd/m² (Typ.)

Contrast ratio : 700:1 (Typ.) (TM)

viewing angle : 85/85/85/85 (Typ.)(CR≥10)

Working mode : AHVA， Constant black display, transmissive

Refresh rate : 60Hz

Touch function : No Touch

Appearance Style : Thin screen (PCBA bent, thickness ≤ 3.0mm)

Panel application : Notebook computer

voltage : 3.3V (Typ.)

Maximum rating : Storage temperature:- 20~60 ° C Operating temperature: 0 ~ 50 °C

interface type : eDP (4 Lanes) ,

Contact Now

B140QAN01.2 is a 14.0-inch LCD module product launched by AU Optronics Corporation (AUO) using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. The display resolution of B140QAN01.2 is 2560 (RGB) × 1440 (Quad HD), with an aspect ratio of 16:9 (width: height). The pixels are arranged vertically in RGB stripes, and the calculated pixel density is 210 PPI. Its display area size is 309.35 × 174.01 (width × height) mm, and its appearance size is 320.8 × 189.4 (width × height) × 4.85 (thickness) mm. The appearance style is a thin screen (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product uses a WLED side entry light source (bottom) with a lifespan of 15K hours and includes an LED driver. B140QAN01.2 adopts eDP (4 Lanes) signal interface and terminal connection, with a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. And the parameters were finally updated on July 26, 2024. Its working temperature is 0~50 ° C, and its storage temperature is -20~60 ° C. Based on its white LED backlight, LED driver, inverted terminal and other features, this model is recommended for use in laptops.

Packing & Shipping

B140QAN01.2 QHD 40PIN 25601440 Laptop LCD LED Screen Panel

B140QAN01.2 QHD 40PIN 25601440 Laptop LCD LED Screen Panel

Trading Process

B140QAN01.2 QHD 40PIN 25601440 Laptop LCD LED Screen Panel

FAQ

1.Can I purchase the products in 1 piece?
Yes,you can,but we do not recommend,because the shipping cost is very high.

2.What payment method can I use?
T/T is the best,we aslo accpet Paypal

3.When is the shipment?
Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment,

and will use third parties delivery services or delivered as clients request.

4.How long is the warranty period?
12 Months

5.How to do if there is a product quality problem?
Please contact the relevant sales as soon as possible.
